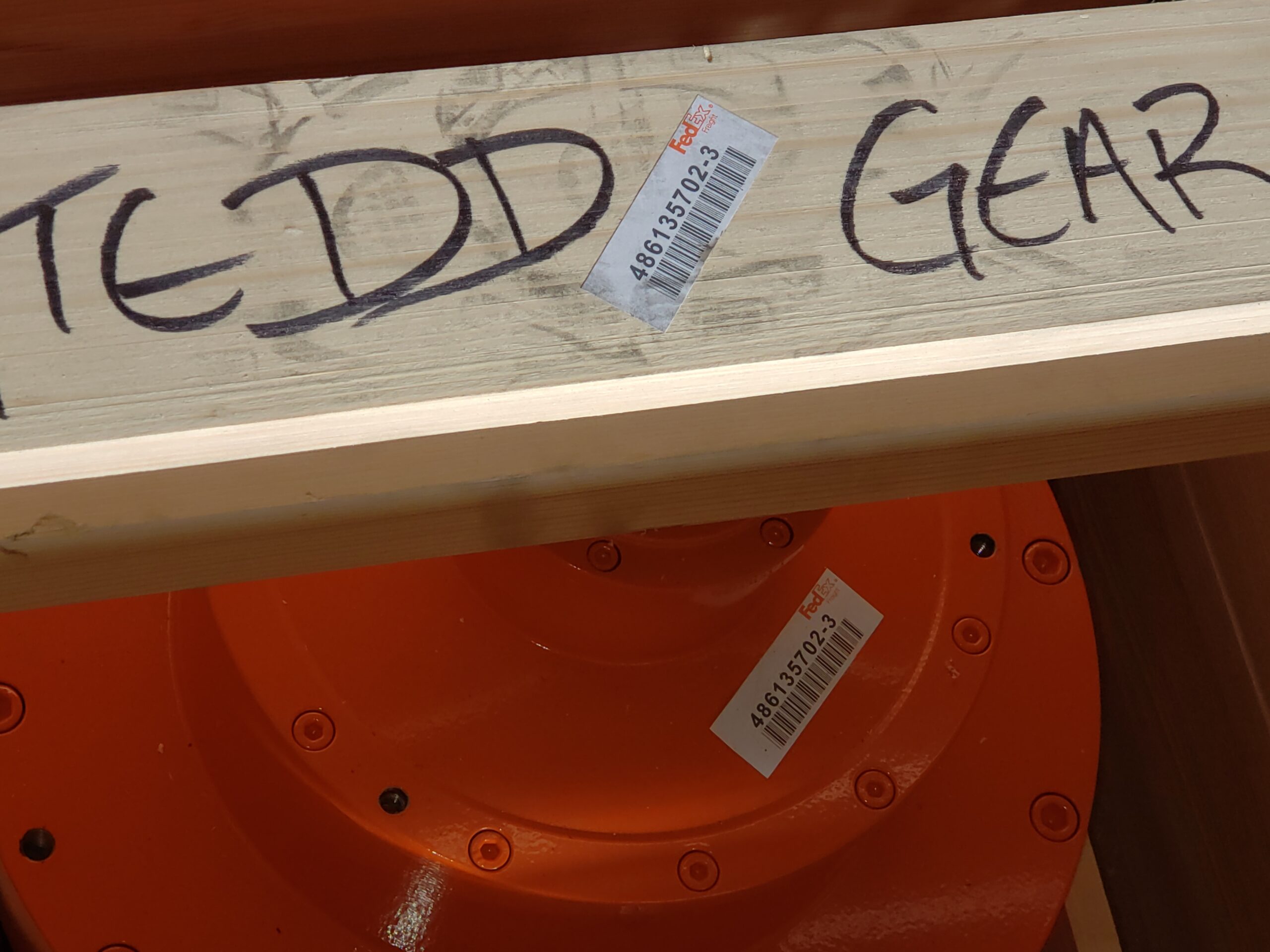

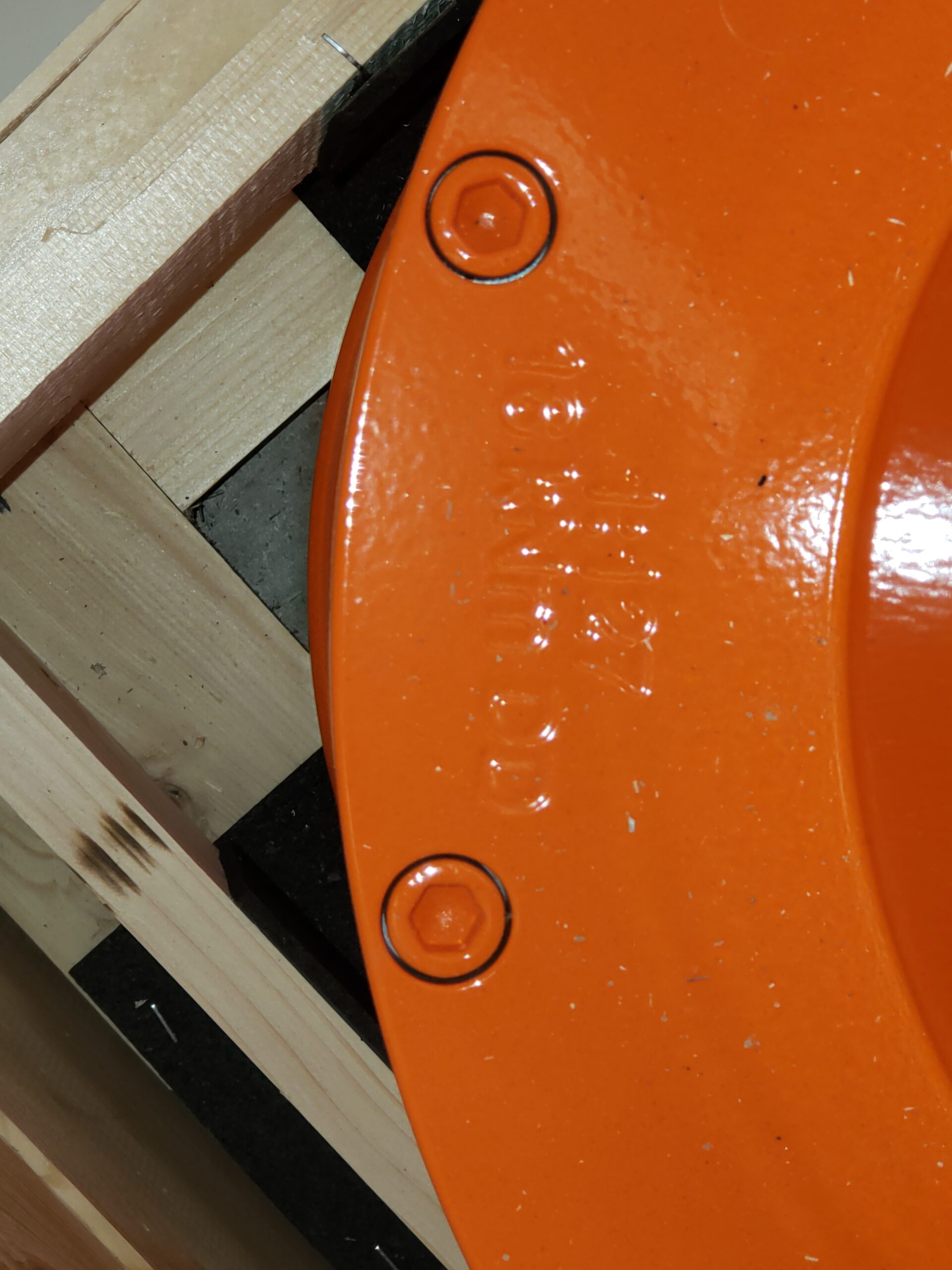

Alfa Laval NX-438 three-phase decanter centrifuge with DD gearbox.  Sold new in 2010 and is now surplus.  Last application:  chicken fat.  This machine is a consignment offering and is being offered for approximately $100,000 less than the cost of a new machine.  Please contact us for addtional details.  Pictures are attached.

One (1) Bird 24″ x 38″ decanter centrifuge.  Left-hand design, stainless steel, 10 degree beach, epicentric plate dams, SA-69 / 80:1 gearbox (NEW!), 5″ single lead, hard-faced conveyor.  Machine is complete with cover, feed tube, and vibration isolators included.

One (1) Bird 24″ x 60″ stainless steel decanter centrifuge.  5″ single lead pitch conveyor.  Hard-faced conveyor.  SA-69, 80:1 gearbox.  Serial #LB2759.

One (1) RECONDITIONED Sharples P-5000 decanter centrifuge.  All contact parts are 316/317 stainless steel including conveyor, bowl, hubs, and casing.  Painted mild steel base.  8″ pitch conveyor with STC tiles.  Hogged-out cake ports.  Open hole epicentric plate dams.  P-180, 95:1 gearbox. This machine is reconditioned with six (6) month limited warranty offered.  F.O.B. Amarillo, Texas.

*Machine is primered and ready to shoot with your preferred colors.

Reconditioned Sharples P-3000 Decanter Centrifuge, complete with six (6) month warranty.  4.25″ conveyor pitch.  Hard-surfaced conveyor and feed zone.  Conveyor features a mild steel, epoxy coated hub with stainless steel flighting.  Slotted ring dam.  40 HP main-drive motor, 7.5 HP in-line back-drive motor.  Motors are 1750 RPM, 3 phase, 60 cycle, 460/480 volt.

Sharples PM-38000 decanter centrifuge.

Sharples P-660 decanter centrifuge.  Stainless Steel product contact areas.  5.5 kW  (7.5 HP) main-drive motor, 3500 RPM, 440 volt.  750 watt (1 HP) back-drive motor, 3440 RPM, 440 volt.

One (1) Flottweg Z6E-2/454 decanter centrifuge.

Two (2) machines available.  Alfa Laval NX-314.  Stainless Steel construction.  3″ (70 mm) pitch spacing.  Hard-faced conveyor.  2.5 kN-M gearbox, 159:1 gear ratio.  Units disassembled for inspection.  Machines are complete.

One (1) Sharples P-3000 decanter centrifuge.  Cylinder bowl.  10 degree internal beach.  4.25″ conveyor pitch with hard-facing.  P-125 gearbox, 125:1 gear ratio.  Stainless steel construction.  Unit disassembled for inspection per the pictures.  Machine is complete.

Two (2) Bird 18″ x 28″ decanter centrifuge.  Stainless steel construction.  15/3 degree beach.  Tiled conveyors.  80:1 gearbox ratio.

Three (3) machines available.  Bird 40″ x 60″ decanter centrifuge. 15/3 degree beach.  Stainless steel construction.  116/1 gearbox ratio.  12″ double lead conveyor with hard-surfacing.

Reconditioned Alfa Laval and Westfalia centrifuges for biodiesel separations.  These centrifuges are capable of instantaneous and continuous separation of water, solids, glycerin and other contaminants from various feedstocks (WVO, animal fats, vegetable oils, yellow grease, trap grease, brown grease, etc.) and produced biodiesel.  Please contact us for a recommendation based on your specific application.

Centrifuge/Separator

Rental Sharples P-3400 decanter centrifuge. Set up with variable speed backdrive (or torque assembly), 4.25″ pitch conveyor with STC tile assemblies full length of conveyor, 316 ss, table mounted. With control panel, 50 HP drive VFD, 20 HP VFD backdrive. Table mounted.

Evodos model 2/25.

Hydraulic flow rate is…4.0 m3/hr (17.5 GPM).  Recommend flow rate for algae separation, dewatering and harvesting is… 2.0 m3/hr (9 – 13 GPM).  Solids holding capacity is…12.5 liters (3.3 gallons) of algae paste.  Fully automated discharge of algae paste.  No operator required.

Motor size:  5.5 kW (7.5 HP)

Evodos model 2/10/.

Hydraulic flow rate is…1.5 m3/hr (6.5 GPM).  Recommended flow rate for algae separation, dewatering and harvesting is… 0.8 m3/hr (3.5 GPM).  Solids holding capacity is ….4 liters (1 gallon) of algae paste.  Semi-automatic discharge of algae paste (solids).

Motor size: 2.2 kW (3 HP)

Ideal for pilot labs and university research.  Algae centrifuge / separator.

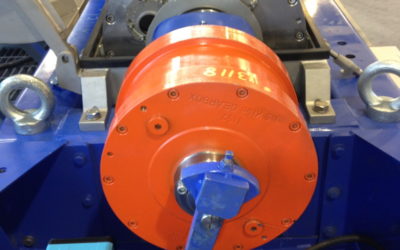

Reconditioned Alfa Laval NX-418 (14″ x 57″) decanter centrifuge.  3.5 kN-M gearbox.  Esjberg-style feed zone.  110 mm (4.25″) pitch.  Double-row cake discharge.  Tungsten carbide tiled wear protection on solids-half of the conveyor.  Stainless Steel construction.  No motors, controls or skid (can be supplied on request).

Andrtiz D5LL Decanter Centrifuge.  3200 max. rpm.  Stainless Steel rotating assembly.

Alfa Laval BRPX-417 Purifier / Concentrator.  50 HP motor.  All stainless steel product contact parts.

Westfalia RSA 80-01 disk stack centrifuge for vegetable oil refining.  Purifier design with centripetal pump discharge of both light and heavy phase.  Used for degumming, soaptock separation, waterwash, refining, etc.  30 HP (22 kW) motor.  380V, 50 Hz.

Sharples P-660 decanter centrifuge.  6″ x 15″ bowl dimensions.  Rated for 3,180 x G-force at 6000 RPM.  Stainless steel product contact areas.  On stand with motors.  Contact us for additional details.  F.O.B. Canada.

Westfalia SA-35-01-076.  Purifier design.  Centripetal pump (paring disc) discharge of both light and heavy phase discharge.  Gear drive.  30 H.P. 230/460 volt, 3-phase, 60 cycle.  All stainless steel product contact areas.  Recently reconditioned and never used.  Contact us for more details.  Two (2) machines available.  Warranty offered.

Westfalia SA-35-03-076.  Concentrator design.  Centripetal pump (paring disc) discharge of heavy phase liquid, gravity (open cover) discharge of light phase liquid.  Gear drive.  30 H.P. 230/460 volt, 3-phase, 60 cycle.  All stainless steel product contact areas.  Recently reconditioned and never used.  Contact us for more details.  Three (3) machines available.  Warranty offered.

The Model 1456 features a 14″ x 56″ stainless steel rotating assembly utilizing a 8.5 deg. beach and is equipped with a high torque 3.5kNm planetary gearbox. Standard configuration includes a main drive step sheave allowing quick and easy changeover from the 650g barite recovery speed, to the 2100g polishing speed with simple hand tools.  Standard safety features include belt guard and case open detection as well as over torque and high vibration shut down.

Two (2) Alfa Laval DMNX-414 decanters available.  3.5 kN-M gearboxes.  110 mm conveyor pitch.  Epicentric plate dams.  Double row cake discharge.  Sanitary-style bowl and conveyor.  GS-coupling.  With motors.  These machines were in operation prior to consignment.  Excellent condition.  Suitable for food-grade sanitary applications or oilfield drilling mud with wear protection added.

Four (4) Alfa Laval BRPX-207 purifiers with spare parts.  Features a pump discharge of both light and heavy phases.  Purifier disk stack.  Can be converted to a concentrator.  10 HP motor.  Complete with tools.  All machines need to be reconditioned to ensure proper operation.  Reconditioning services are readily available, estimated at 4 – 8 weeks lead time depending on the machine.

Alfa Laval B-214 Centrifuge.  Excellent for biodiesel/glycerin separation, biodiesel/waterwash separation, vegetable oil waterwashing, etc.  300 GPM hydraulic flow capacity.  40 HP motor, clutch drive design.  Can be converted to direct drive and explosion proof.  Three (3) machines available.  Two are reconditioned and ready-to-go.

Sharples high speed P-3400 HHS in 316 stainless with P-95 gearbox and 3″ pitch conveyor, capable of up to 5000 RPM speed generating up to 4970 x G. With moon plate dams and 360 degree cake discharge.

NEW!  Kyte 1656 oilfield decanter centrifuge. The Model 1656 features a 16″ x 56″ stainless steel rotating assembly utilizing a 10 deg. beach and is equipped with a high torque 4.1kNm planetary gearbox. Standard configuration includes a main drive step sheave allowing quick and easy changeover from the 650g barite recovery speed, to the 2100g polishing speed with simple hand tools.  Standard safety features include belt guard and case open detection as well as over torque and high vibration shut down.

Westfalia model CA-450 separating decanter for three phase product separation.  Ideal for separating oil, water & solids, etc.  50 HP main drive motor, 15 HP back drive motor.  Sold as a reconditioned unit complete.  Control system optional.  Dual voltage, 60 Hz, 3-phase. Stainless Steel rotating assembly.  Hard-faced wear protection on the conveyor.  Both light and heavy phases discharged by gravity (no pumps).

Westfalia model CA-365-010 decanter in stainless with paring device pump discharge of centrate, 50 HP motor, built 1983 / 1984. Previous use citrus pulp.

30″ X 96″ high “G” Bird decanters in stainless construction with 10 degree contour bowls, suitable for operation at 2550 X “G”. Gearbox 75/1 ratio, very attractive pricing. Model 4900.  Built in 1986 for ethanol plant and regularly maintained by Bird, 200 HP main drive, 460/3/60, with 40 HP Eddy Current Brake Backdrive, lube system.  F.O.B. Amarillo, TX.

Rental Sharples P-3400 decanter centrifuge. Set up with variable speed backdrive (or torque assembly), 4.25″ pitch conveyor with STC tile assemblies full length of conveyor, 316 ss, table mounted. With control panel, 50 HP drive VFD, 20 HP VFD backdrive. Table mounted.

Sharples PM-35000 decanters, details to follow.

Bird Humboldt 40 x 60 screen bowl decanters in stainless, excellent condition. Missing bases. With casings and pillowblock housings and geaboxes. Max speed 1800 RPM generating 1840 x G. Built 1969.

Used Sharples XM-905 decanters thickening design (PM-95000BD) with 15 degree contour beach angle. 16″ double lead conveyor, axial flow with STC tile assemblies and BD disc, P-95-180 gearboxes, ring dam centrate discharge, 400 HP Reliance drive motor, 460/3/60 motor 452 Amp, Frame 5010Z, S.F. 1.15; 40 HP DC backdrive, 360 degree cake discharge with STC lined ports, grooved bearch, silencer rings, similar to PM-95000. VFD control systems added late 1990s. Used 100-200 hours since last reconditioning. Built 1987 and 1988. Used previously to thicken 1-1.5% W.A.S. to about 8% prior to anaerobic digestion. Bowl dimensions 40″ x 140″. New price each about $1,000,000. Attractive reconditioned price from Kyte Centrifuge.

Truck mounted Sharples P-5400 in 316 / 317 stainless with 8.5″ pitch single lead conveyor with STC tiles, P-47.5/180 gearbox, 250 HP main drive NEMA 7, VFD, with backdrive 50 HP or torque arm system, all truck mounted, with enclosed 20 x 8 room for controls and drives, with auger conveyor cake takeaway system.

Pieralisi Giant 2 decanter in stainless truck mounted, details to follow.

Truck mounted Jumbo-3 decanters in 304 stainless, 6.1 inch (155 mm) pitch with STC tiles in feed zone and conical section, welded carbide in liquid end, Rotodiff type gearbox rated at 78,800 inch pounds or 8,920 Nm, with two viscotherm pumps fed by a 55 KW XP motor, 480/3/60 or 400/3/50 current.

Newly redesigned solid bowl basket centrifuges specially designed for the separation of animal wastes, without the use of polyelectrolytes or any other additive. Click picture for more information. NSF / EPA TESTED AND VERIFIED FOR ANIMAL WASTE SEPARATIONS.

The Triton Separator, a solid bowl basket centrifuge, can be used on flushed dairy, swine, cattle, poultry or other animal manure waste, older lagoon sludges, or to dewater aerobic or anaerobic digester sludge. Possibly can be used on fish waste, algae or other wetlands production. Suitable as a manure separation & thickening device prior to anaerobic digestion.

Eliminates thousands of gallons of water applied to the fields. The centrifuge manure solids dry cake at up to 31% dry material can still be applied to the fields, if desired, without overloading fields with water creating runoff. No more worries about “saturated” fields.

Removes typically 70-85% of suspended solids in fresh flushed dairy or swine manure waste. Test reports available. Lower or higher removal rates possible on request, via changes in feed rate, machine size or G force.

Completed NSF / EPA testing at North Carolina State University with the full size TS-5000 model. Verification report has been published verifying the suitability of the Triton Separator for removing suspended solids from fresh flushed swine manure waste. ONLY manure separation device to date to be NSF verified.

Wide range of manure slurry feed rates, feed solids concentrations and feed materials can be accepted. Minor coarse prescreening recommended, only, for large debris such as gloves, rags, bottles, and misc debris.

No polyelectrolytes or other additives required. Polyelectrolytes can be used if solids removal levels in the high nineties are required. Dosage levels for given solids removal levels are much lower than with decanter type centrifuges.

NITROGEN – PHOSPHORUS: While not specifically designed to remove nitrogen and phosphorus, about 25% of the nitrogen and about 50% of the phosphorus are removed coincidentally when at least 70% of the suspended manure solids are removed, on swine manure. Research is continuing on dairy manure.

Great flexibility with process requirements for solids discharge. Can dewater fresh flushed swine manure solids to about 30% dry solids (pictured) or thicken to about 5-10% per process requirements. Any level between 5-30% can be obtained by easy adjustments.

No full time operator required for continuous operation. Easy to use.

No gearbox or internal conveyor.

No filter media to blind. No filter belts or filter cloths to replace every six (6) months.

Push button on / off for complete and continuous cycles after simple one time keypad setup. Uncomplicated design and operation.

State of the art new controls supplied. Weather / fume resistant. Powder coated enclosures. NEMA 4 operator’s control station.

Production sizes to use 15-75 HP drive motors, depending on centrifuge size and feed rate requirement.

Equipped with 230 volt, single phase, 60 cycle drive system for farm use in outlying locations. 230/3/60, 460/3/60, 575/3/60, 400/3/50 design and other designs (on request) are also available.

All stainless contact parts.

Pneumatic discharge of solids automatic. Small air compressor included and built into the control cabinet.

Reasonable cost. Two sizes currently available. Leasing option available in the states of North Carolina, Virginia, West Virginia, South Carolina and Florida through BB & T Leasing, at rate of 2.0-2.5% over prime for five (5) years (subject to confirmation). Call for contact name and phone #. Alternate leasing available in all other States.

Lubrication required only every 400 operating hours via grease gun.

Start up assistance included. A video film for operators will be developed and included with new orders.

A pilot size solid bowl basket centrifuge is available for rental with rental & consulting fees applicable to the purchase of production size basket centrifuges from KCS & C. The pilot size test centrifuge has a bowl with dimensions of 14″ x 6″ and is capable of the same G force as the production units. All pilot test data can be directly scaled up to production feed rates. See adjacent picture.
